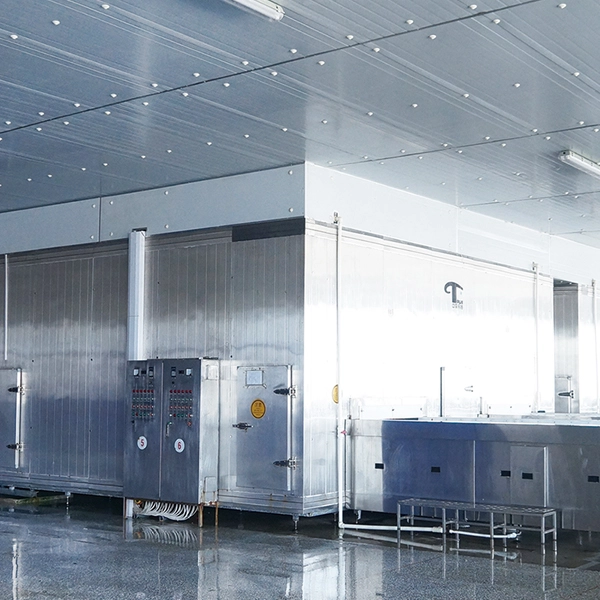

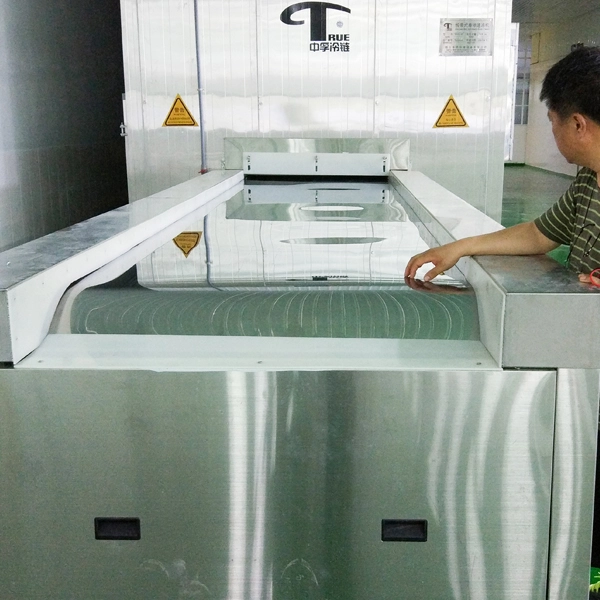

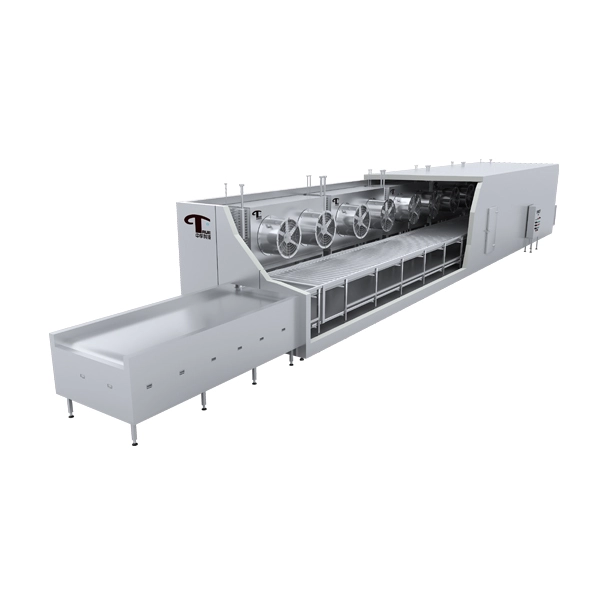

The stainless steel quick freezing machine uses steel plate strips for transportation, featuring a smooth surface that is ideal for direct freezing and rapid processing speeds. As a versatile piece of IQF equipment, it can be configured according to different air supply methods, including unidirectional air supply, bidirectional impact plates, or systems combining air supply with low-temperature saltwater sprays.

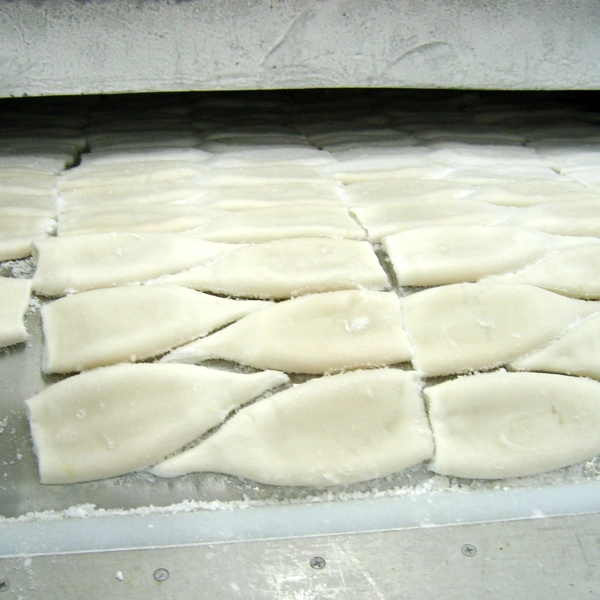

This technology is primarily utilized for the rapid freezing of granular, flaky, and block-shaped foods such as fruit slices, shrimp, fish, and meat. While it serves a different purpose than industrial freeze drying equipment, which removes moisture through sublimation, the stainless belt freezer is the industry standard for maintaining the individual shape and quality of frozen products.
 Item | Nominal Freezing Capacity | Outline Dimension | Cabinet Length | Motor Power | Cooling Capacity | Belt width | Inlet/outlet length/height | Liquid/Gas out Pipe Diameter | Diameter Of Water Defrosting Pipe | Water Defrosting Quantity |
| Type | Kg/h | L*W*H mm | mm | KW | KW | mm | mm | mm | mm | m3/h |
| TBF250-1200 | 250 | 13710*2950*2720 | 9060 | 6.9 | 60 | 1219 | 3200/1165 850/675 | 2-DN32/DN65 | 2-DN50 | 15.4 |
| TBF500-1200 | 500 | 20730*2950*2720 | 16080 | 15.1 | 94 | 1219 | 3-DN32/DN65 | 3-DN50 | 24.2 | |
| TBF600-1200 | 600 | 23070*2950*2720 | 18420 | 17.9 | 106 | 1219 | 5-DN32/DN65 | 5-DN40 | 27.3 | |
| TBF700-1200 | 700 | 25410*2950*2720 | 20760 | 20.9 | 119 | 1219 | 4-DN32/DN65 | 4-DN50 | 30.6 | |
| TBF300-1500 | 300 | 13710*3250*2720 | 9060 | 10.2 | 69 | 1500 | 2-DN32/DN65 | 2-DN50 | 17.8 | |
| TBF500-1500 | 500 | 18390*3250*2720 | 13740 | 12.1 | 90 | 1500 | 4-DN32/DN65 | 4-DN40 | 23.1 | |
| TBF750-1500 | 750 | 23070*3250*2720 | 18420 | 17.9 | 121 | 1500 | 5-DN32/DN65 | 5-DN50 | 31.1 | |
| TBF1000-1500 | 1000 | 27750*3250*2720 | 23100 | 24.1 | 152 | 1500 | 7-DN25/DN50 | 7-DN40 | 39.1 |
| TBFD Series Ordinary Double-plate Belt Individually Quick Freezer Performance Parameter List | ||||||||||
| Item | Nominal Freezing Capacity | Outline Dimension | Cabinet Length | Motor Power | Cooling Capacity | Belt width | Inlet/outlet length/height | Liquid/Gas out Pipe Diameter | Diameter Of Water Defrosting Pipe | Water Defrosting Quantity |
| Type | Kg/h | L*W*H mm | mm | KW | KW | mm | mm | mm | mm | m3/h |
| TBFD500-1200 | 500 | 13710*5675*2720 | 9060 | 13.7 | 121 | 1219*2 | 3200/1165 850/675 | 4-DN32/DN65 | 4-DN50 | 31.1 |
| TBFD1000-1200 | 1000 | 20730*5675*2720 | 16080 | 30.1 | 187 | 1219*2 | 6-DN32/DN65 | 6-DN50 | 48 | |
| TBFD1500-1200 | 1500 | 27750*5675*2720 | 23100 | 45.9 | 254 | 1219*2 | 14-DN25/DN50 | 14-DN40 | 65.2 | |
| TBFD1000-1500 | 1000 | 18390*6275*2720 | 13740 | 27.4 | 184 | 1500*2 | 8-DN32/DN65 | 8-DN40 | 47.3 | |
| TBFD1500-1500 | 1500 | 23070*6275*2720 | 18420 | 35.8 | 242 | 1500*2 | 10-DN32/DN65 | 10-DN50 | 62.2 | |
| TBFD2000-1500 | 2000 | 27750*6275*2720 | 23100 | 47.8 | 304 | 1500*2 | 14-DN25/DN50 | 14-DN40 | 78.1 | |
| TBFH Series Impact Plate Belt Individually Quick Freezer Performance Parameter List | ||||||||||
| Item | Nominal Freezing Capacity | Outline Dimension | Cabinet Length | Motor Power | Cooling Capacity | Belt width | Inlet/outlet length/height | Liquid/Gas out Pipe Diameter | Diameter Of Water Defrosting Pipe | Water Defrosting Quantity |
| Type | Kg/h | L*W*H mm | mm | KW | KW | mm | mm | mm | mm | m3/h |
| TBFH350-1200 | 350 | 14880*3000*3200 | 10230 | 23.7 | 87 | 1219 | 3200/1165 850/675 | 4-DN25/DN65 | 4-DN40 | 22.4 |
| TBFH500-1200 | 500 | 19560*3000*3200 | 14910 | 35 | 114 | 1219 | 8-DN25/DN50 | 8-DN40 | 29.3 | |
| TBFH750-1200 | 750 | 26580*3000*3200 | 21930 | 58.2 | 163 | 1219 | 8-DN25/DN65 | 16-DN40 | 41.9 | |
| TBFH800-1200 | 800 | 27750*3000*3200 | 23100 | 58.2 | 168 | 1219 | 8-DN25/DN65 | 16-DN40 | 43.2 | |
| TBFH500-1500 | 500 | 16050*3280*3200 | 11400 | 34.7 | 113 | 1500 | 6-DN25/DN65 | 6-DN40 | 29.1 | |
| TBFH750-1500 | 750 | 21900*3280*3200 | 17250 | 51.9 | 156 | 1500 | 6-DN25/DN65 | 12-DN40 | 40.1 | |
| TBFH800-1500 | 800 | 23070*3280*3200 | 18420 | 58.1 | 168 | 1500 | 6-DN32/DN65 | 12-DN40 | 43.2 | |
| TBFH1000-1500 | 1000 | 27750*3280*3200 | 23100 | 74.7 | 205 | 1500 | 8-DN32/DN65 | 16-DN40 | 52.7 | |
| TBFHD Series Impact Double-plate Belt Individually Quick Freezer Performance Parameter List | ||||||||||
| Item | Nominal Freezing Capacity | Outline Dimension | Cabinet Length | Motor Power | Cooling Capacity | Belt width | Inlet/outlet length/height | Liquid/Gas out Pipe Diameter | Diameter Of Water Defrosting Pipe | Water Defrosting Quantity |
| Type | Kg/h | L*W*H mm | mm | KW | KW | mm | mm | mm | mm | m3/h |
| TBFHD700-1200 | 700 | 14880*5775*3200 | 10230 | 46.8 | 173 | 1219*2 | 3200/1165 850/675 | 8-DN25/DN65 | 8-DN40 | 44.5 |
| TBFHD1000-1200 | 1000 | 19560*5775*3200 | 14910 | 69.1 | 227 | 1219*2 | 16-DN25/DN50 | 16-DN40 | 58.3 | |
| TBFHD1500-1200 | 1500 | 26580*5775*3200 | 21930 | 115.6 | 326 | 1219*2 | 16-DN25/DN65 | 32-DN40 | 83.7 | |
| TBFHD1000-1500 | 1000 | 16050*6335*3200 | 11400 | 68.8 | 226 | 1500*2 | 12-DN25/DN65 | 12-DN40 | 58.1 | |
| TBFHD1500-1500 | 1500 | 21900*6335*3200 | 17250 | 104.8 | 314 | 1500*2 | 12-DN25/DN65 | 24-DN40 | 80.6 | |
| TBFHD2000-1500 | 2000 | 27750*6335*3200 | 23100 | 149.1 | 411 | 1500*2 | 16-DN25/DN65 | 32-DN40 | 105.5 | |
| TBFS Series Salt-water Plate Belt Individually Quick Freezer Performance Parameter List | ||||||||||
| Item | Nominal Freezing Capacity | Outline Dimension | Cabinet Length | Motor Power | Cooling Capacity | Belt width | Inlet/outlet length/height | Liquid/Gas out Pipe Diameter | Diameter Of Water Defrosting Pipe | Water Defrosting Quantity |
| 型号Type | Kg/h | L*W*H mm | mm | KW | KW | mm | mm | mm | mm | m3/h |
| TBFS350-1200 | 350 | 13710*2950*2720 | 9060 | 18.6 | 72 | 1219 | 3200/1165 1450/670 | 2-DN25/DN50+DN25/DN80 | 2-DN40 | 13 |
| TBFS500-1200 | 500 | 18390*2950*2720 | 13740 | 25.6 | 91 | 1219 | 3-DN25/DN50+DN32/DN80 | 3-DN40 | 16.4 | |
| TBFS600-1200 | 600 | 20730*2950*2720 | 16080 | 29 | 105 | 1219 | 4-DN25/DN40+DN32/DN80 | 4-DN40 | 18.9 | |
| TBFS800-1200 | 800 | 26580*2950*2720 | 21930 | 48 | 129 | 1219 | 5-DN25/DN40+2-DN25/DN65 | 5-DN40 | 23.2 | |
| TBFS500-1500 | 500 | 16050*3250*2720 | 11400 | 21.5 | 91 | 1500 | 3-DN25/DN50+DN32/DN80 | 3-DN40 | 16.4 | |
| TBFS600-1500 | 600 | 18390*3250*2720 | 13740 | 28.6 | 104 | 1500 | 4-DN25/DN40+DN32/DN80 | 4-DN40 | 18.7 | |
| TBFS800-1500 | 800 | 21900*3250*2720 | 17250 | 39.6 | 129 | 1500 | 5-DN25/DN40+2-DN25/DN65 | 5-DN40 | 23.2 | |
| TBFS1000-1500 | 1000 | 26580*3250*2720 | 21930 | 43 | 153 | 1500 | 6-DN25/DN40+2-DN25/DN80 | 6-DN40 | 27.5 | |
| TBFSD Series Salt-water Double-plate Belt Individually Quick Freezer Performance Parameter List | ||||||||||
| Item | Nominal Freezing Capacity | Outline Dimension | Cabinet Length | Motor Power | Cooling Capacity | Belt width | Inlet/outlet length/height | Liquid/Gas out Pipe Diameter | Diameter Of Water Defrosting Pipe | Water Defrosting Quantity |
| Type | Kg/h | L*W*H mm | mm | KW | KW | mm | mm | mm | mm | m3/h |
| TBFSD700-1200 | 700 | 13710*5675*2720 | 9060 | 36.8 | 144 | 1219*2 | 3200/1165 1450/670 | 4-DN25/DN50+2-DN25/DN80 | 4-DN40 | 25.9 |
| TBFSD1000-1200 | 1000 | 18390*5675*2720 | 13740 | 51.5 | 182 | 1219*2 | 6-DN25/DN50+2-DN32/DN80 | 6-DN40 | 32.7 | |
| TBFSD1000-1500 | 1000 | 16050*6275*2720 | 11400 | 42.8 | 182 | 1500*2 | 6-DN25/DN50+2-DN32/DN80 | 6-DN40 | 32.7 | |
| TBFSD2000-1500 | 2000 | 26580*6275*2720 | 21930 | 85.6 | 306 | 1500*2 | 12-DN25/DN40+4-DN25/DN80 | 12-DN40 | 55 | |
According to the different ways of delivering, Belt Freezer can be classified as: Unidirectional blast Belt Freezer; Bidirectional blast Belt Freezer,Namely Hit-Belt Freezer; Salt water-Belt Freezer which blasts on one side and sprays salty water with low temperature on the other.
According to the number of transmission belts, Belt Freezer can be classified as: Single-Belt Freezer and Double-Belt Freezer.
Stainless Belt Individually Quick Freezer is mainly suitable for quick-freezing processing of aquatic products, meat, prepared food, etc.
