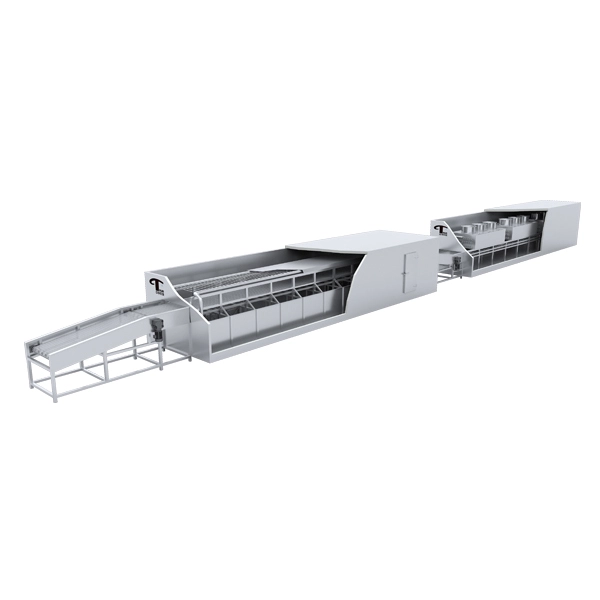

The salt-water spray freezing device is mainly used for rapid freezing of seafood, mainly shrimp, squid, sardine and other aquatic products. The product is subjected to contact freezing by salt water spray, and then enters the freezing tunnel for deep freezing after the product surface is frozen.
| Item | Nominal Freezing Capacity | Outline Dimension | Cabinet Length | Motor Power | Cold consumption of brine section | Cold consumption of quick-frozen section | Belt width |
| Type | Kg/h | L*W*H mm | mm | KW | KW | KW | mm |
| TNFY1000-1530 | 1000 | 24130*3600*2980 | 12330 | 26.5 | 131 | 66 | 1530 |
| TNFY2000-1530 | 2000 | 32320*3600*2980 | 20520 | 39 | 246 | 95 | 1530 |
| TNFY3000-1530 | 3000 | 41680*3600*2980 | 29880 | 40 | 333 | 114 | 1530 |
The brine system needs to use SUS316 stainless steel plate heat exchanger, which is corrosion-resistant and has high heat exchange efficiency.
Frequency conversion control of the mesh belt reducer can realize continuous adjustment of speed.
