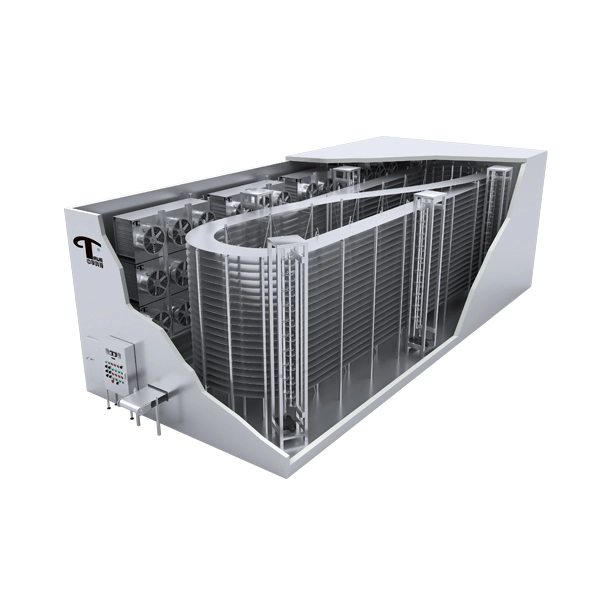

The Gear-drinen spiral quick freezer machine adopts a special structural design, which does not cause flipping, and has the characteristics of space saving, low in and low out, smooth operation, simple operation, and easy cleaning. It can be used for food processing such as pasta, meat, fish, ice cream, etc.
| Performance Parameter List for Gear-driven Single Spiral | ||||||||
| Item | Freezing capability | Inner Circle Diameter | Net Width | Net Effective Width | Heat Storage Dimensions (L*W*H) | Inlet/outlet length | Cold Consumption | Installed Power |
| 型号 Model | kg/h | mm | mm | mm | mm | mm | KW | KW |
| TGF400-2010 | 400 | 2000 | 708 | 600 | 6720*4980*2740 | 2000/600 | 91 | 10.05 |
| TGF500-2012 | 500 | 6720*4980*3050 | 108 | 14.25 | ||||
| TGF550-2014 | 550 | 6720*4980*3360 | 120 | 19.05 | ||||
| TGF600-2512 | 600 | 2500 | 758 | 650 | 7890*6150*3050 | 120 | 13.4 | |
| TGF800-2516 | 800 | 7890*6150*3670 | 146 | 14.6 | ||||
| TGF1100-2522 | 1100 | 7890*6150*4600 | 190 | 19.8 | ||||
| TGF700-3012 | 700 | 3000 | 758 | 650 | 7890*6730*3050 | 142 | 21.6 | |
| TGF1300-3022 | 1300 | 7890*6730*4600 | 215 | 19.4 | ||||
| TGF1200-3518 | 1200 | 3500 | 758 | 650 | 9060*7320*3980 | 203 | 19.8 | |
| TGF1500-3522 | 1500 | 9060*7320*4600 | 241 | 20.5 | ||||
In addition to single spiral and double spiral, spiral individually freezer can also be in the form of gear-driven spiral.

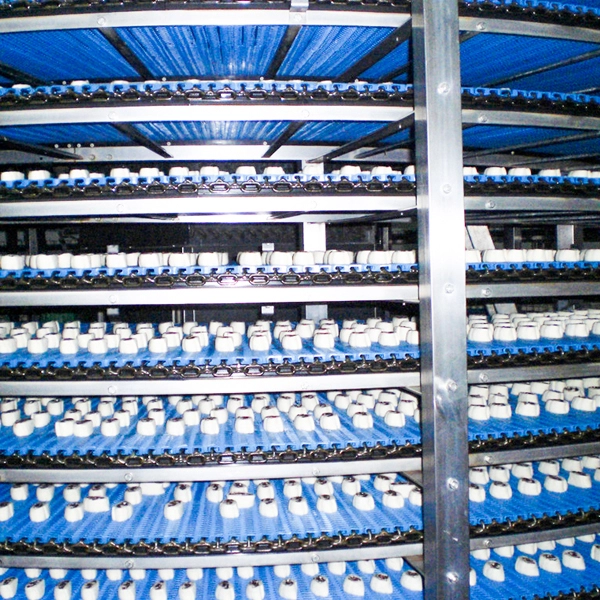

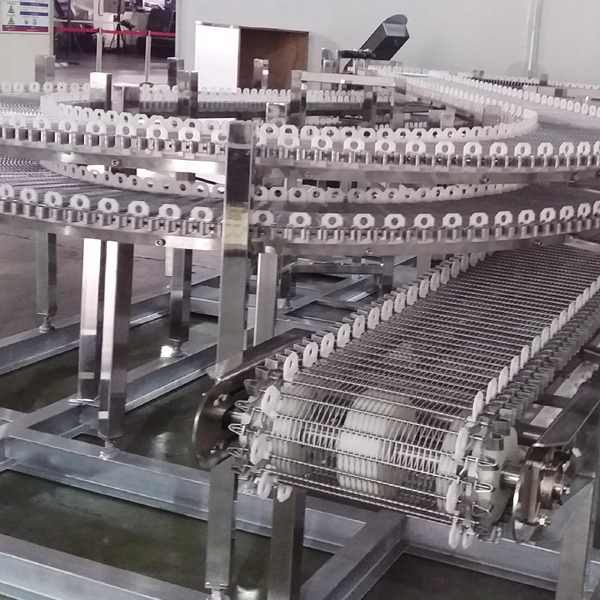

Gear-driven spiral adopts a rotary cageless design, and single spiral can also realize the low input and low output shipping mode.
Interior space of the gear-driven spiral is easier to clean and service.
It adopts PLC automatic control, smooth operation and simple operation.
Gear-driven spiral adopts a special structure design to avoid the appearance of web turning.
CIP cleaning systems and evaporator air defrosting functions can be added according to customer require- ments.
