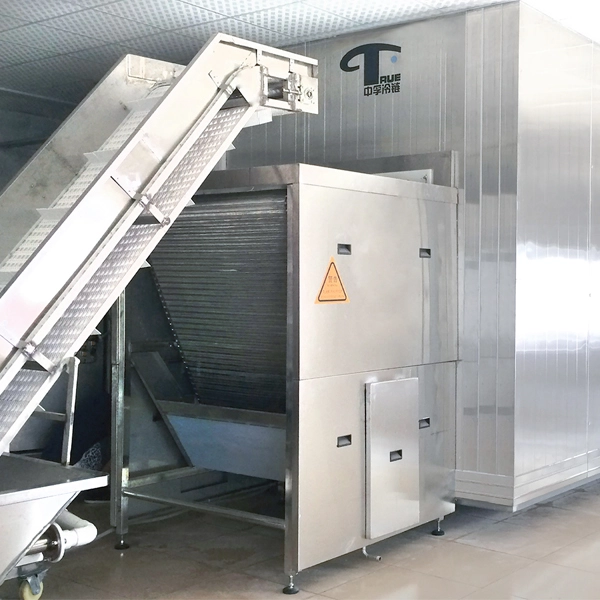

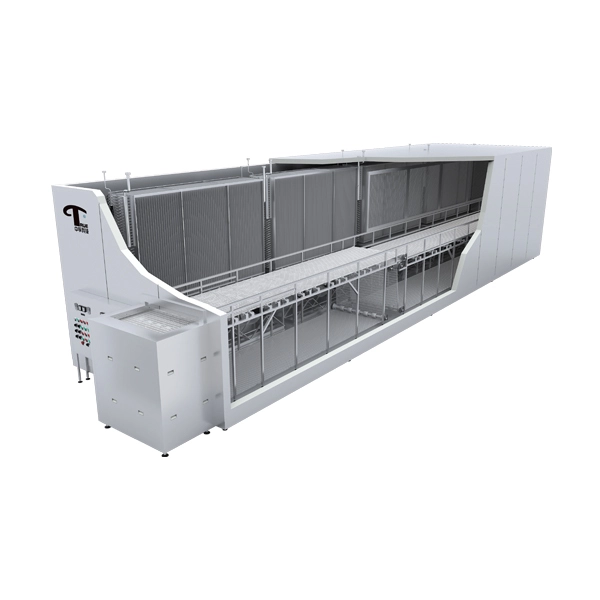

The fluidized freezing machine uses mechanical vibration and wind to suspend and freeze materials on the conveyor belt, thereby achieving rapid freezing of materials and preventing adhesion. The structure is divided into single-stage fluidization and two-stage fluidization. The equipment is mainly suitable for freezing small volume materials such as granules, flakes, and strips, such as green beans, peas, corn kernels, chestnuts, strawberries, various fruit slices, and diced fruits.
| TLFD Series Two-section Fluidizing Quick Freezer Performance Parameter List | ||||||||
| Item | Nominal Freezing Capacity | Outline Dimension | Cabinet Length | Belt width | Motor Power | Cooling Capacity | Inlet/outlet length/height | Water Defrosting Quantity |
| Type | Kg/h | 长*宽*高(L*W*H) mm | mm | mm | KW | KW | mm | m3/h |
| TLFD500L | 500 | 8420*4330*3850 | 6720 | 1220 | 63.1 | 147 | 1500/2295 200/1425 (150mm)Height of cement foundation | 37.8 |
| TLFD1000L | 1000 | 9590*4330*3850 | 7890 | 63.1 | 197 | 50.6 | ||
| TLFD1500L | 1500 | 13100*4330*3850 | 11400 | 98.3 | 286 | 73.5 | ||
| TLFD2000L | 2000 | 14270*4330*3850 | 12570 | 98.3 | 337 | 86.5 | ||
| TLFD2500L | 2500 | 17780*4330*3850 | 16080 | 132.8 | 425 | 109.1 | ||
| TLFD3000L | 3000 | 20120*4330*3850 | 18420 | 145.3 | 489 | 125.6 | ||
| TLFD3500L | 3500 | 23630*4330*3850 | 21930 | 167.3 | 564 | 144.8 | ||
| TLFD4000L | 4000 | 24800*4330*3850 | 23100 | 180 | 628 | 161.2 | ||

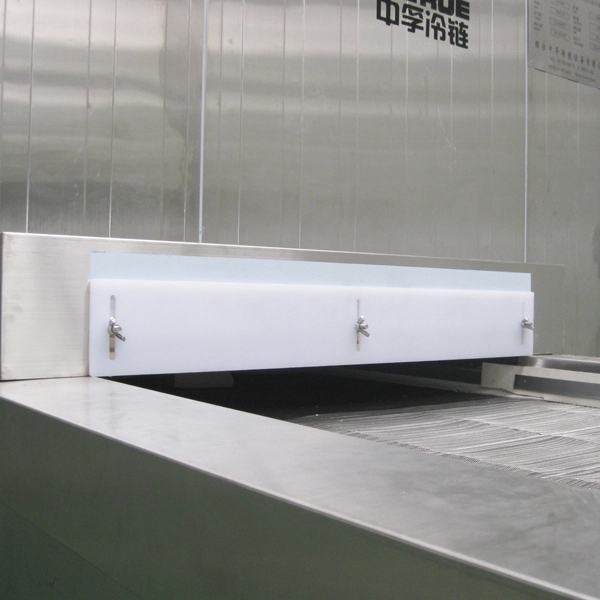

In the process of conveying and freezing, the material is blown by high-speed, high-pressure air flow and suspended or semi-suspended by the low-temperature air flow surrounded and quickly frozen, and a vibration device that can adjust the frequency is designed under the conveyor belt to avoid all kinds of products sticking to each other during the freezing process.
